[バイク] Z250の公式写真とスペックが公開

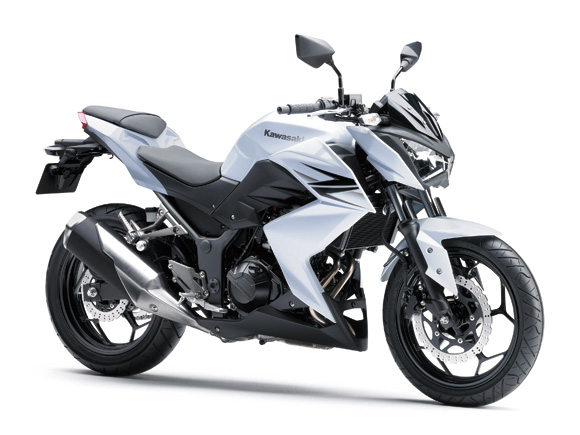

Kawasaki Z250 photo 17

カワサキインドネシアのサイトに「Z250」の諸元表が掲載されました。

Ninja 250との重量差は172-168=4kg、馬力は32 PSでトルクは21 N.m。Ninjaのシリンダーが248 cmなのに対して249 cmだったり、DOHC 4バルブなのに対して8バルブだったりとちょっと違うような・・・って8バルブ??マジですか。(記載ミスだと思う)

Suspensi Depan 37 mm telescopic fork
Suspensi Belakang Bottom-Link Uni-Trak with gas-charged shock and 5-way adjustable preload
Rem Depan Single 290 mm petal disc with dual-piston caliper
Rem Belakang Single 220 mm petal disc with dual-piston caliper
Ban Depan 110/70-17 M/C (54S)
Ban Belakang 140/70-17 M/C (66S)
Panjang x Lebar x Tinggi 2,010 x 750 x 1,025 mm
Jarak Poros Roda 1,400 mm
Jarak ke Tanah 145
Berat 168 kg
Kapasitas Bensin 17 litres
Trail 26 / 82 mm
ENGINE
Tipe 4-stroke, liquid-cooled Parallel Twin
Maksimum Power 23.5 kW {32 PS} / 11,000 rpm
Torsi Maksimum 21.0 N.m {2.1 kgf.m} / 10,000 rpm
Diameter x Langkah 62.0 x 41.2 mm
Volume Silinder 249 cm
Valve System DOHC, 8 valves
Sistem Bahan Bakar Fuel Injection (ѳ28 mm x 2) with dual throttle valves
Sistem Pengapian Digital
Sistem Pendinginan Liquid-cooled
Perbandingan Kompresi 11.3 : 1
DRIVETRAIN
Jumlah Transmisi 6-speed, return
Primary Reduction Ratio 3.087 (71/23)
Rasio Gigi Ke-1 2.600 (39/15)
Rasio Gigi Ke-2 1.789 (34/19)
Rasio Gigi Ke-3 1.409 (31/22)
Rasio Gigi Ke-4 1.160 (29/25)
Rasio Gigi Ke-5 1.000 (27/27)
Rasio Gigi Ke-6 0.893 (25/28)
Final Reduction Ratio 3.286 (46/14)
Tipe System Final Drive Drive chain
Drive Rasio Keseluruhan 9.056
Kapasitas Coolant 1.5
Kopling Wet, Multi – disc

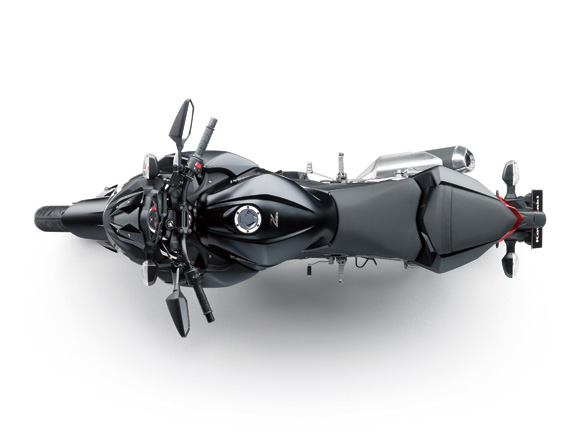

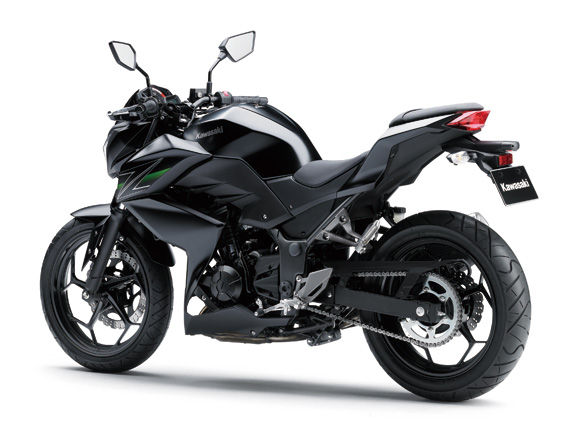

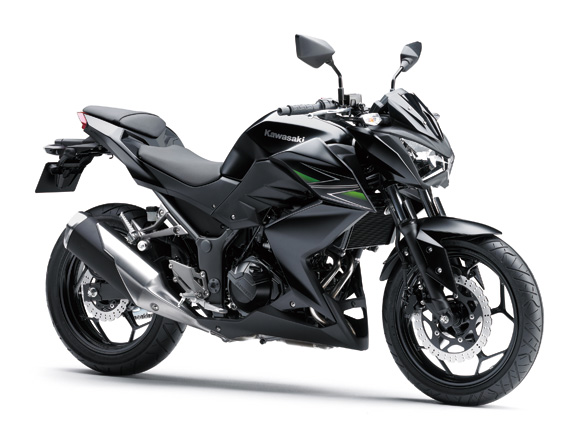

Kawasaki Z250 photo 16Kawasaki Z250 photo 14Kawasaki Z250 photo 15Kawasaki Z250 photo 13Kawasaki Z250 photo 03Kawasaki Z250 photo 04
